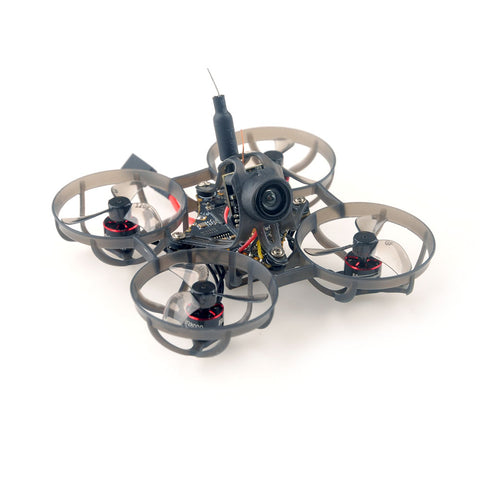

HappyModel Mobula6 2024 1S 65mm Ultra Light Micro FPV TinyWhoop ELRS

*Compatible Battery BETAFPV 300mAh 1S BT2.0

Features:

AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
Super light 1S 65mm Brushless whoop only 17.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
FX17-B 1/3 CMOS 800TVL Camera awesome footage
Smooth and powerful
Compatible with 1S Lipo/LIHV (GNB A30 Connector) or BT2.0 Connector
Note: Battery Not Included

Specifications:

Brand Name: Happymodel
Item Name: Mobula6 2024 1S 65mm ultra-light micro FPV Whoop
Wheelbase: 65mm
Size: 81mm*81mm*37mm
Weight: 17.7g

Receiver Option:

2.4GHz ExpressLRS Serial receiver

Spare Parts Specifications:

Motor	Mode: SE0702 KV28000 Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.Len):Φ9.5mm14mm Weight(g):1.46g No.of Cells(Lipo):1S only
Propellers	Materials: PC Inch: 31mm Pitch: 0.8 in Weight: 0.21g Mount hole diameter: 1mm
Flight controller	SuperX ELRS AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 Sensor:BMI270(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw (MSP control) Built-in UART ExpressLRS v3.0.0 Built-in voltage meter sensor, voltage meter scale 110 Built-in current meter sensor, current meter scale 1175
Onboard 4in1 ESC	Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay v0.19.2 Default protocol: DSHOT300 Recommend ESC Startup power value to min1100/max1200
Onboard Serial ExpressLRS receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna: Enameled copper wire antenna Telemetry output Power: <12dBm Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx
Onboard 5.8g VTX	Firmware version: OPENVTX MSP VTX PIT Mode support Channels:40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL
FX17-B Camera	Model: FX17-B Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL FOV 150° Signal System: NTSC Net Weight: 1.5g Dimensions: L14mmW14mmH13mm

Package Includes:

Item Name	Qty
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy	1
SuperX ELRS AIO 5-IN-1 Flight controller	1
SE0702 KV28000 brushless motor	4
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)	1
FX17-B 1/3 CMOS 800TVL camera NTSC 4:3	1
Onboard 5.8G 25mw~400mw VTX	1
Spare canopy	1
Propeller disassemble tool	1
Screwdriver	1
