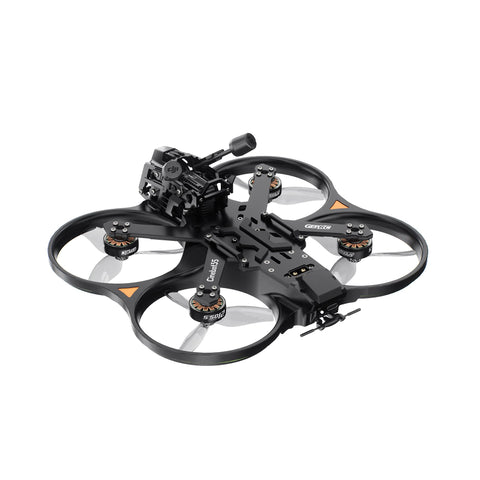

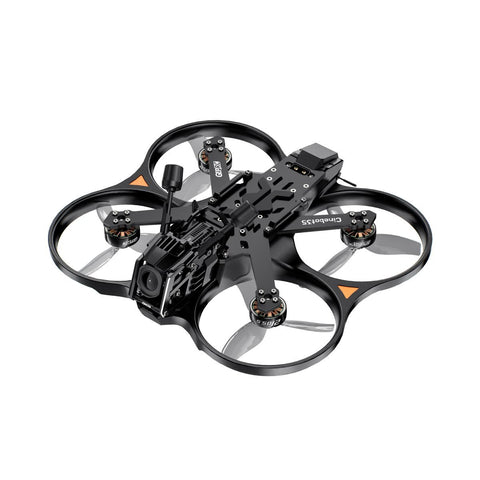

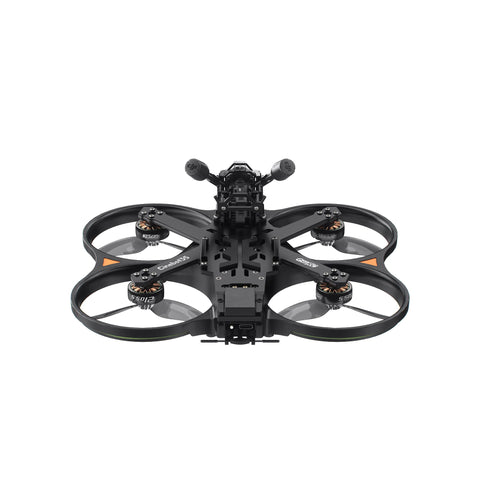

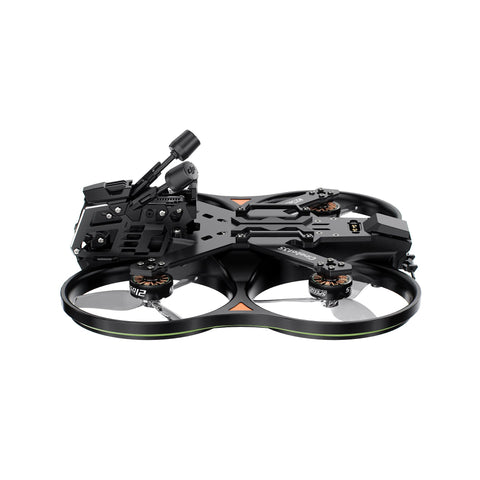

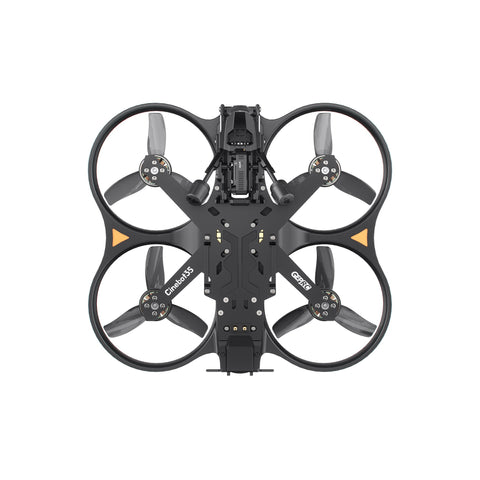

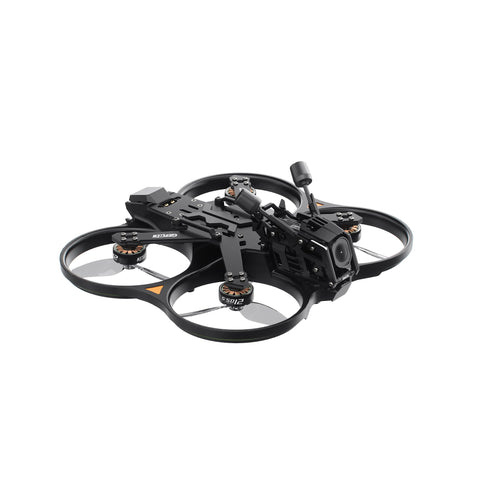

GEPRC Cinebot35 O4 Pro HD 6S CineWhoop FPV Drone GPS ELRS
The all-new Cinebot35 is not just an evolution in size — it represents a complete integration of advanced flight concepts.
Designed for both professional cinematic shooting and daily freestyle flying, GEPRC engineers have developed a brand-new solution that balances power, stability, and versatility.
Powered by the latest TAKER H743 Mini Flight Controller, H60 32-bit 60A ESC, and 2105.5 / 2450KV motors, Cinebot35 delivers strong, responsive, and aggressive throttle performance — ensuring every punch-out is precise and powerful.
Continuing the suspended vibration-damping design from the Cinebot25V2, Cinebot35 features an independent HD camera mounting system, allowing VTX modules to be shared across different models, making maintenance simpler within a highly integrated structure.
Cinebot35 marks a new stage of professional imaging and high-efficiency flight performance.
Feature
- 6-Point Suspended Vibration-Damping Independent HD Camera Unit
- New Power System: TAKER H743 FC + H60 Mini ESC + 2105.5/2450KV Motors
- Equipped with DJI O4 Air Unit Pro (O4 Version)
- Fully Optimized Frame Structure with High-Coverage Electronics Bay
- Dedicated Function Board: Anti-Spark, Buzzer, LED BEC, USB Tuning Port
- Protective Front Canopy to Safeguard DJI O4 Air Unit Pro
- Includes Dedicated Action Camera Mount
Specifications
- Model: Cinebot35 O4 Pro Version
- Frame: GEP-CT35
- Main Plate Thickness: 3.5 mm
- Bottom Plate Thickness: 1.5 mm
- Wheelbase: 167 mm
- Flight System: TAKER H743 Flight Controller + H60 Mini ESC
- MCU: STM32H743
- Gyro: ICM42688-P (SPI)
- FC Firmware: GEPRC_TAKER_H743MINI
- Flash: 16 MB
- ESC: H60 Mini 32-bit
- Motor: SPEEDX2 2105.5 / 2450KV
- Propeller: HQProp D-T90MM ×3
- Battery Connector: XT60
- VTX: DJI O4 Air Unit Pro
- Camera: DJI O4 Air Unit Pro Camera
- Antenna: DJI O4 Air Unit Pro Antenna
- Receiver: PNPPNP (O4 Pro built-in RX) / ELRS 2.4G
- Weight (ELRS 2.4G Version): 388 g ±5 g
- GPS: GEP-M10Q
- Recommended Battery: 6S 1300mAh – 6S 1550mAh
- Flight Time: 10–11 minutes
(Tested with slow cruising flight. Actual flight time may vary depending on flying style.)
Includes
- 1 × Cinebot35 Quadcopter
- 4 × HQProp D-T90MM (Pairs)
- 1 × 15*150mm Battery Strap
- 1 × L-Shaped 1.5mm Hex Wrench
- 1 × Spare Screw Pack
- 1 × Anti-Slip Battery Pad
- 1 × Binding Plug
- 4 × Rear Landing Pads
- 2 × Front Bottom Landing Pads
- 1 × Front Top Cover
- 2 × O4 Antenna Mounts
- 2 × Acrylic Plates
- 3 × Damping Balls
Spare Screw Kit Includes
- 2 × Rivet Nuts
- 4 × M2*4 Button Head Hex Screws
- 3 × M2*10 Button Head Hex Screws
- 4 × M2*7 Button Head Hex Screws
- 3 × M2*6 Button Head Hex Screws
- 2 × M2*10 Socket Head Screws
Additional Accessories (Selected Versions Only)
- 1 × Receiver Connector Cable (O4 PNP)
