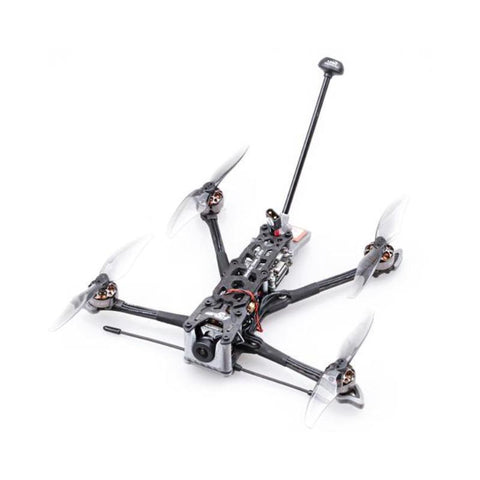

Flywoo Explorer LR 4 V2 HD Micro Long Range FPV Ultralight Drone
Explorer LR HD V2 is Flywoo's first new Fpv Quadcopter in 2021!
Features
The V2 version features a powerful F745 flight controller packed with features including a barometer,
blackbox, 7 complete hardware serial ports, I2C functionality and WS2812 LEDs on each corner.
Built-in Bluetooth module, You can use mobile devices to set the parameters of the flight
The lightweight 4-inch quad below 250g even if you connect with the battery, meet the current requested
of FAA rules. Easy to control and long flight time, we strongly recommend to FPV beginners and pilots who
like to cruise! Built-in Smo 4k camera power cable Upgrade GPS to V2.0, use copper foil to effectively
prevent the signal from being interfered by Vista.
Note: SMO 4K Camera is NOT INCLUDED
Specification:
Brand Name: Flywoo
Model: Explorer LR V2 HD ( Vista HD System )
Item Name: 4 Inch Long Range RC Drone Bnf w/ Vista / Nebula Pro F745 BGA FC GPS V2.0
Weight: 246g
Flight Time: 15-16 mins
Main Changelog V2:
1、 Vista to Nebula Pro
2、 Equipped with Goku F745 16x16 stack
3 、GPS upgraded to V2.0 Faster and more stable
4、Built-in SMO 4K Camera power cable
5、Built-in BT-Nano Moudle
Explorer LR quad is the masterpiece of the collaboration between Flywoo and #micro long range original creator Dave_C . #Micro long range is a brand new field, and we will explore more fun in this field with Dave_C in the future.
Message from Dave_C FPV:
For me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7" long range quad produces.
So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7" long range quad until it is below 250g take off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!
This tiny quad is equipped with GPS, Crossfire and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analogue video transmission. The powertrain with it's GOKU 16x16 stack and the all new 2700kV 1404 motors spinning 4" props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 mile) round trips easily. And the best thing about it: It's incredibly quiet! You nearly can't hear it flying by as soon as you are a few dozen meters away. ”
----- Dave_C FPV
|
Goku F745 2-4S 16x16 Stack |
GOKU F745 16X16 FC SIZE: 22*23mm Weight: 2.3g Hole: 16*16-3mm MCU: STM32F745 UARTS: 1/2/3/4/5/6/7 I2C: SCL/SDA GYRO: MPU6000 BARO: BMP280 BEC: 5V 2A LED:4*WS2812 FLASH: 8M Input Voltage: 2-4S Firmware: FLYWOOF745NANO BS13A BLheli_S 2-4S 4in1 ESC Weight: 2.5g Mounting Hole: 16x16mm (M3) - Support Oneshot, Multishot, DShot150/300/600 |
| GOKU VTX625 |
Output Power: PIT/25mW/50mW/100mW/200mW/450mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 5V
LED: 4*WS2812LED
Video System: NTSC/PAL
Antenna: IPEX
Size: 31MM*31MM
hole: 16*16mm/20*20mm/25.5*25.5mm
Weight: 3g
|
| NIN 1404 V2 2750KV Motor | Brand Name: FLYWOO Model: NIN 1404 Item Name: 1404 2750KV 4-6S Brushless Motor Color: Titanium Input Voltage: 4-6S Stator diameter: 14mm Stator height: 4mm KV: 2750KV Shaft size: M1.5 |
| Gemfan 4024 Propeller |
Brand Name: Gemfan Item Name: 4024 4x2.4 4 Inch Propeller Quantity: 2 CW & 2 CCW |
|
Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System |
Weight: Camera included: 27g/Antenna:2.5g
Dimensions:
Vista Kit: 30x29x13mm
Camera: 19x19x20mm
Coaxial Cable:80mm/120mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
Min. Latency (end-to-end):
Low Latency 720p 120fps: 12-28ms
High Quality Mode: 720p 60fps: 30-40ms
Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
I/O Interface: USB-C,IPEX,3-in-1 Port
Supported Flight Control System: F3,F4,F7
Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
Input Power: 7.4-26.4V
Power output: 25mW/200mW/500mW/700mW
Hardware included:Vista/Nebula nano/Coaxial cable/Antenna
Goggles: work with DJI goggles
Camera:Sensor: 1/3''CMOS
Lens: 2.1mm,f/2.1
Shutter: Rolling shutter
FOV: 150°[D],122°[H],93°[V]
|
|
Recommend Lipo Battery ( NOT Included) |
Recommend 4S 650-1300mAh Lipo XT30 Plug |
How to Work Flywoo Finder v1.0？
Flywoo Finder v1.0 can power itself to beep and LED light to flash even the quad battery has been ejected.
Fingder v1.0 can work for 4-5 hours.
Press the button for 3 seconds to close it
How to Work Flywoo Goku GPS Mini V1.0 Rescue Function?
Before disarm, GPS must search for more than 5 satellites to lock the home position.
After disarming, observe the OSD data during the flight, and the rescue function can work normally only if the distance exceeds 100 m. Otherwise, the quad will crash.
If the remote control suddenly loses signal, the GPS rescue function will work automatically and return to the home position. (Set the AUX of GPS rescue mode in betaflight Failsafe, the default is AUX3 2000)
Package Included:
1* Prebuilt and tested Explorer LR V2 Drone
1 set * Side carbon plate
1* Spare srew
2*Gemfan 4024 4pcs
