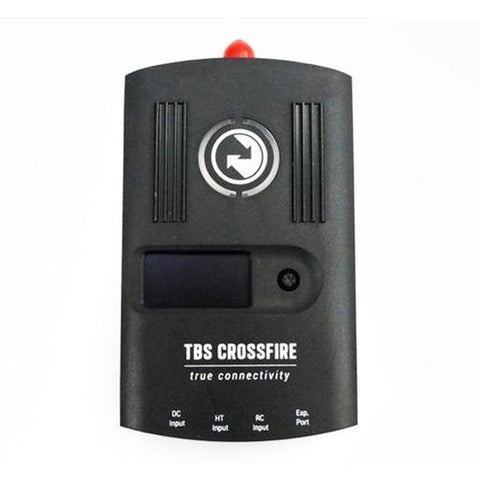

TBS Crossfire TX Lite

Dhs. 499.00

Quantity

Featured Products

RadioMaster Bandit ExpressLRS 915MHz ELRS RF 1W Module TX

Dhs. 333.00 Dhs. 381.00

SUNLU PETG 3D Printer Filament 1.75mm 1KG

Dhs. 54.00

RadioMaster Bandit BR3 ExpressLRS 915MHz ELRS TCXO Receiver

Dhs. 96.00

RadioMaster TX16S Mark II Max Radio Controller Transmitter

Dhs. 886.00 Dhs. 1,086.00

RadioMaster Bandit Nano ExpressLRS 915MHz RF ELRS 1W Module TX

Dhs. 153.00 Dhs. 191.00

DOGCOM 5200mAh 6S 120C 22.2V LiPo Battery QS8 [DG]

Dhs. 311.00 Dhs. 443.00

The TBS CROSSFIRE TX LITE packs all the regular Crossfire technology. As it comes without a Bluetooth module, it's perfect for FPV pilots who want to save a bit of money!

A NEW ERA OF CONNECTIVITY

The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diveristy, tiny receivers for FPV quads, the TBS CROSSFIRE contains the most modern technology to provide a superior long range control link.

Remote control links, however, are tasked with much more than range. Latency, telemetry, robustness against interference, connectivity with smart devices, ease of use and the overall finish are too often sacrificed for that last bit of range. The Crossfire comes with plenty of range, and uses that margin for additional functionality and reliability. A bright future for FPV lies ahead :)

DEVELOPED BY EXPERTS

Team BlackSheep has been notorious for long range records, close-to-ground proximity flying in the Alps and deep urban operations. During our numerous missions all around the globe we have gathered a list of requirements, and have found that no existing system can cover them all. So we set on a long and painful path to develop a RC link system entirely from scratch, put it through its paces for over a year to ensure top-notch reliability and state-of-the-art functionality.

Through the OLED Display on the transmitter, you can monitor the real-time location of your drone (TBS GPS or BlackBox with DJI Naza or APM-based GPS required). The up- and downlink status provide a feeling of safety, the configuration options through the OLED display do away with any PC-based configuration tools. The pulsing LED relays your link budget and link health in colorized form (green = keep going, orange = turn around). In case of a crash, the location of the drone is visible on the OLED as well. The built in battery on the receiver turns it into a beacon automatically - and it will continue to transmit its last known location until the battery runs out.

IT JUST WORKS

Apart from unparalelled range, the thing that we are most proud about on the TBS CROSSFIRE is that it just works. In the past, our question always was "could our R/C link keep up?". With the TBS CROSSFIRE comes peace of mind. But don't take our word for it. All leading drone racing organizers require pilots to fly the TBS Crossfire. All top drone racers fly the TBS Crossfire. The furthest long range missions are flown with TBS Crossfire. This is the long range link that everyone has been waiting for!

TELEMETRY / CRSF

As a modern R/C link, it has telemetry built in. Two-way communication opens up new possibilities. From updating your firmware, setting your video transmitter channel to adjusting flight control parameters such as PIDs. Adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone flying Betaflight, KiSS or ArduPilot/Pixhawk platforms.

DOWNLOADS

FEATURES:

Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing & frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Serial Modem capable of transmitting serial protocols (up & downlink)
RX beacon mode to recover your downed aircraft
Super easy binding and configuration via built-in display
Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8ch Diversity Rx, 4ch PPM/SBUS Mini-receiver (4g weight!)
8 or 12ch output via PPM/SBUS/CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 10mW to 2W (local restrictions apply)
Dedicated head-tracking input option for full FPV immersion
Transmitter LED shows link health, OLED display for built in configuration
Short-Range mobile connectivity telemetry output for smartphone apps
Fully configurable by OpenTX and TBS TANGO remote using CRSF protocol
CRSF protocol interface to Betaflight, Kiss and Raceflight FCs ( lower latency, higher update rate, telemetry support )
Expansion port for future feature support
Micro-receiver for smaller drones. Smaller than you think!
Software updates via RF Link
