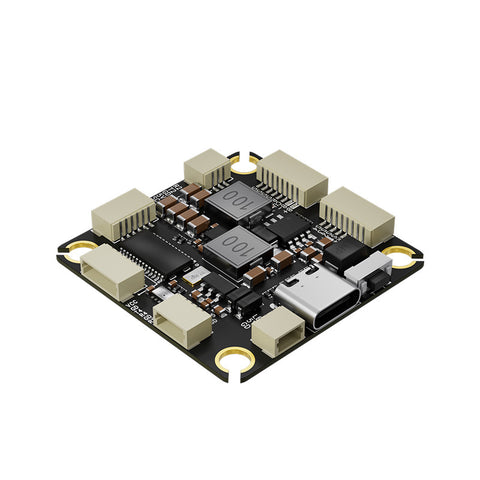

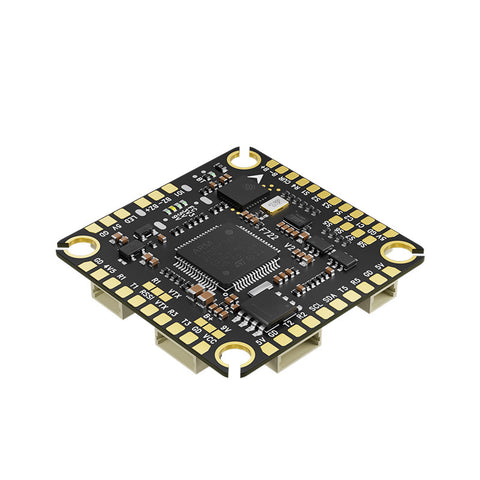

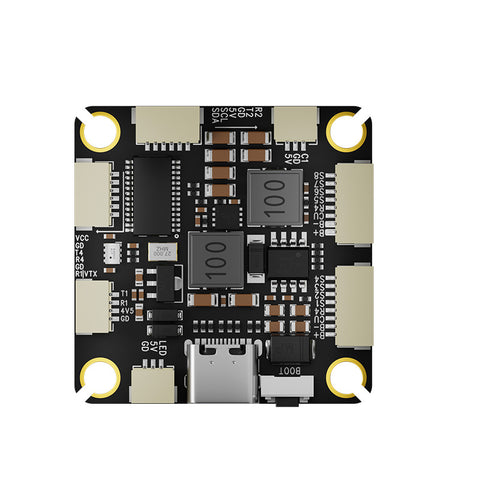

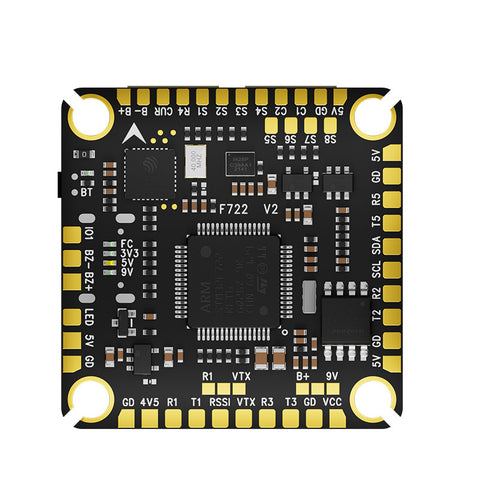

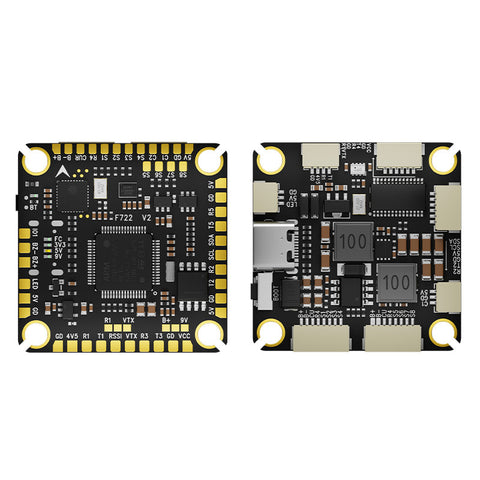

AocodaRC F722 V2 Flight Controller 30.5x30.5mm

Specifications

  • MCU: STM32F722RET6, MHz,  MB Flash
  • Board V3.0-ICM Version: IMU: ICM42688 (SPI1)
  • Board V3.0-MPU Version: IMU: MPU6888 (SPI1)
  • Gyro: ICM42688P(SPI1)
  • Baro: SPL06-001(I2C )
  • OSD: AT7456E(SPI2)
  • Blackbox: 16MB(SPI3)
  • 5x Uarts (1,2,3,4,5)
  • 10x PWM outputs(including “LED strip” pad)
  • 1x I2C
  • 3x ADC (VBAT, RSSI, CURR)
  • 3x LEDs for FC Status (Blue, Red) and 3V indicator(Red)
  • Built-in inverter for SBUS input
  • USB Type-C
  • Dual camera input and free switching
  • Receiver: ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBs Crossfre/DSMX
  • DJI FPV OSD is supported by any spare Uart

Power

  • Vbat Input: 12.6~33.6V (3~8S LiPo)
  • BEC: 5V/2.5A, 9V/2.5A(Max.2.7A)
  • No built-in Current Sensor
  • Static power: 200mA@5V with Betaflight,  150mA@5V with ArduPilot

Physical

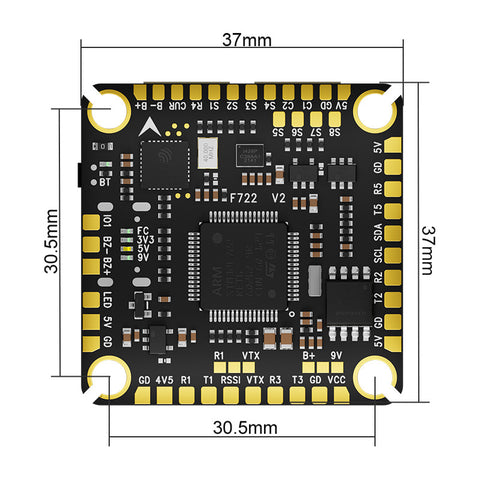

  • Dimensions: 37mm*37mm
  • Mounting Hole: M3 30.5mm*30.5mm*1.6mm
  • Weight: 9.4g

FC Firmware

  • BetaFlight: AOCODARCF722V2
  • INAV: AOCODARCF722V2
  • ArduPilot(ChiBiOS): AOCODARCF722V2

Including

  • F722 V2 FC*1
  • 8PIN SH1.0 connection cable* 2
  • M3*8 shock-absorbing ball*4
